מיקסר משולב פרסונס StudioLive AR12c PreSonus

מיקסר משולב פרסונס StudioLive AR12c PreSonus

• Microphone Preamp
• Type XLR Female, Class A XMAX
• Maximum Input level (unity gain) +9 dBu ±1.0 dB
• Gain Control Range 43 dB (+12 to +55 dB)
• Frequency Response to Analog Outputs 20 Hz to 20 kHz, +0.5/-1.5 dB
• Frequency Response to USB (Direct) 20 Hz to 20 kHz, +0.5/- 1.5 dB
• S/N Ratio to Outputs (+4 dBu) 94 dB
• THD+N (min. gain, A-wtd) < 0.01%
• Input Impedance 1 kΩ
• EIN (+55 dB gain, 150Ω input, 20 Hz-22 kHz, A-wtd) Mono Channels: < 128 dBu
• Common Mode Rejection Ratio (1 kHz, +55 dB gain) 65 dB
• Phantom Power +48V, ±3V, Global
• Note: All Channel Inputs sum through Mic preamp
• Instrument Inputs
• Type ¼” TS Female, Unbalanced, Hi-Z
• Maximum Input Level (min. gain, 1 kHz@0.5% THD+N) +9 dBu ±1.0 dB
• Gain Control Range 43 dB, ±1 dB (+12 to +55 dB)
• Frequency Response to Analog Outputs 20 Hz to 20 kHz, +0.5/-1.5 dB
• Frequency Response to USB (Direct) 20 Hz to 20 kHz, +0.5/-1.5 dB
• Dynamic Range (min. gain, A-wtd) > 105 dB
• Dynamic Range (mid. Gain, unwtd) > 108 dB
• THD+N (1 kHz, -1 dBFS, A-wtd) < 0.01%
• THD+N (1 kHz, -1 dBFS, unwtd) < 0.01%
• Input Impedance > 1 MΩ
• Note: All Channel Inputs sum through Mic preamp
• Line Inputs
• Type ¼” TRS Female, Balanced
• Maximum Input Level (min. gain, 1 kHz@0.5% THD+N) +26 dBu ±1.0 dB
• Gain Control Range
• Mono Channels: 40 dB, ±1 dB (-5 to +35 dB)
• Stereo Channels: 0 dB or +10 dB (+10 dB Boost)
• Frequency Response to Analog Outputs 20 Hz to 20 kHz, +0.5/-1.5 dB
• Frequency Response to USB (Direct) 20 Hz to 20 kHz, +0.5/-1.5 dB
• S/N Ratio to Analog Outputs (+4 dBu) 85 dB
• THD+N (1 kHz, -1 dBFS, A-wtd) < 0.01%
• Input Impedance (Balanced) 10 kΩ
• Note: All Channel Inputs sum through Mic preamp
• Main, Control Room, Monitor, and FX Outputs
• Type (Main Outputs) XLR Male, Impedance Balanced
• Type (Control Room, Monitor, FX Outputs) ¼” TRS Female, Balanced
• Rated Output Level (Main Outputs) +24 dBu, ±1.0 dB
• Rated Outputs Level (Control Room, Monitor, FX Outputs) +18 dBu
• Frequency Response 20 Hz to 20 kHz, +0.5/-1.5 dB
• Dynamic Range (A-wtd) > 108 dB
• THD+N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd) < 0.01%
• Output Impedance 100 Ω
• Headphone Output
• Type ¼” TRS Female, Stereo, Unbalanced
• Maximum Output Level 150 mW/channel @ 60 Ω
• Frequency Response 20 Hz to 20 kHz, +0.5/-1.5 dB
• Dynamic Range (A-wtd) > 103 dB
• THD+N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd) < 0.01%
• System Crosstalk
• Input to Output (Ref = +4dBu, 20 Hz to 20 kHz, unwtd) -90 dBu
• Adjacent Channels (Ref = +4 dBu, 20 Hz to 20 kHz, unwtd) -85 dBu
• Signal Level LED
• Signal -30 dBFS (pre-EQ)
• Clip -3.0 dB before clip (pre- or post-EQ)
• Channel EQ
• Low Cut 100 Hz, -18 dB/Octave
• High Shelving ±15 dB @ 10 kHz
• Mid Peaking (Mono Channels) ±15 dB @ 140 Hz to 3.5 kHz (variable)
• Mid Peaking (Stereo Channels) ±15 dB @ 2.5 kHz
• Mid-Band Q Boost: 1.0, Cut: 2.5
• Low Shelving ±15 dB @ 100 Hz
• Digital Audio
• Host Interface USB 2.0
• ADC Dynamic Range (Component) 114 dB
• ADC Dynamic Range (Measured: A-wtd, 48 kHz) 105 dB
• DAC Dynamic Range (Component) 114 dB
• DAC Dynamic Range (Measured: A-wtd, 48 kHz) 105 dB
• Signal-to-Noise (a-weighted) -96 dB
• Bit Depth 24-bit
• Internally Supported Sample Rates 44.1, 48, 88.2, 96 kHz
• Jitter < 80 ps RMS (20 Hz – 20 kHz)
• Jitter Attenuation > 60 dB (1 ns in => 1 ps out)
• SD Recorder
• Supported Media Format FAT16 formatted SD™ card, FAT32 formatted SDHC™ card
• Media Storage Capacity SD card: 2 GB; SDHC card: 32 GB
• Recording File Format Stereo WAV
• Playback File Formats Stereo WAV, MP3 (96-320 kbs, 32 / 44.1 / 48 kHz)
• Sampling Rate (WAV) 44.1 kHz
• Bit Depth
• Recording: 24-bit
•
• Playback: 16- or 24-bit
•

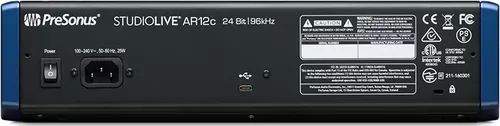

• Power/Environmental
• Connector IEC
• Input Voltage Range 90 to 240 VAC
• Recommended Ambient Operating Temperature 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
• Physical
• Height 3.5” (89 mm)
• Width (Chassis only) 18.9” (480 mm)
• Depth 15.6” (397 mm)
• Weight 14.1 lbs (6.4 kg)
